Rugged Full IP67 ARM Based Box Computer 2
BENEFITES
- Full IP67 Protection: Provides complete protection against dust, water, and extreme weather conditions, making it ideal for outdoor and industrial applications exposed to harsh elements.
- Rugged Die-Cast Aluminum Chassis: Built with a sturdy die-cast aluminum housing, offering enhanced durability, shock resistance, and protection against physical damage in challenging environments.
- ARM-Based Processor: Powered by a high-performance ARM processor, designed for energy efficiency and optimal processing power in industrial computing applications.
- Wide Operating Temperature Range: Operates efficiently in a broad temperature range (-20¡ãC to 70¡ãC), ensuring reliable performance in extreme hot or cold environments.
- Multiple I/O Ports: Features multiple connectivity options, including USB 3.0, USB 2.0, Ethernet, RS232/RS485, HDMI Output and optional GPIO, providing flexibility for various industrial and automation setups.
- Sealed Connectivity Options: All I/O ports are designed with sealed M12 connectors, further enhancing the device's resistance to environmental hazards like dust, moisture, and corrosive substances.
- Reliable Data Security: Equipped with secure boot and advanced encryption protocols to safeguard sensitive data and protect against unauthorized access.
- Low Power Consumption: The ARM-based architecture ensures low energy consumption, making the device efficient for long-term, cost-effective operation in remote or power-limited locations.
- Rugged Cooling System: Integrated passive cooling for effective heat dissipation without the need for a fan, maintaining optimal performance even in high temperatures.
- Built for Industrial Standards: Meets industrial certifications for reliability and safety, ensuring durability in regulated environments like manufacturing, logistics, and automation.
- Long-Lasting Durability: Designed for continuous operation in demanding environments, ITD¡¯s box computer ensures long-term durability and reduced downtime, minimizing maintenance costs.
OVERVIEW
Engineered for the toughest environments, ITD¡¯s Rugged Full IP67 ARM-Based Box Computer is the ultimate solution for industrial-grade applications. Featuring a robust die-cast aluminum chassis, this powerhouse is designed to withstand extreme conditions, offering full protection against dust, water, and shock. Whether in manufacturing, outdoor kiosks, transportation, or field operations, this high-performance device provides reliable computing with ARM-based processing power, ensuring seamless operation in harsh environments. With its IP67 rating, it delivers exceptional durability, making it the ideal choice for industries that demand both ruggedness and performance.


Rugged Full IP67 ARM Based Box Computer

Model Name ITD-MNPC-IPAN-3568
IP Rating N/A

PC Systems

CPU ARM Quad Core RK3568, Cortex-A55
GPU Mali-G52-2EE High Performance
RAM DDR3 2GB, max. 4GB
ROM 8GB max. 32GB
Decoding Resolution Support 1080P/H.265(4K2K)
OS Support Android 11/Linux

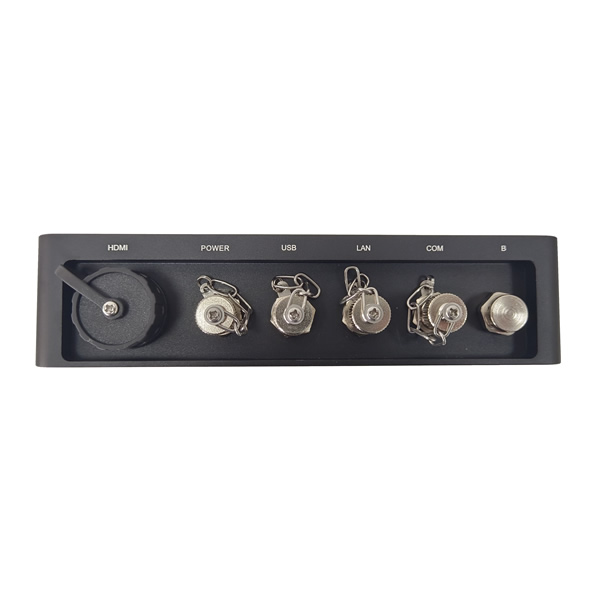

Default Waterproof M12 I/O

Serial Ports 1 ¡Á COM
USB Ports 2 ¡Á USB 2.0
LAN 1 ¡Á RJ45
Video Output 1 ¡Á HDMI Output
Power 1 ¡Á DC9~36V input

Network

Bluetooth Bluetooth 4.1
LAN 1 ¡Á RJ45 (10M/100M Ethernet)
WiFi 2.4GHz, 802.11b/g/n/AC, Dual Band optional
4G/5G Optional

File Support

Video H.264, MKV, WMV9, MPEG 1/2/4, HD Divx, Xvid, RM/RMVB;
Image BMP/PNG/GIF/JPEG
Audio MP3,WMA,WAV,EAAC+, MP2 dec, Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text txt

Others

Power Switch 1 ¡Á Power Switch
Breathing Valve 1 ¡Á Breathing Valve

On-Screen Display Languages

English, French, German, Italian, Polish, Russian, Simplified Chinese, Spanish, Turkish, Arabic, Japanese, Traditional Chinese etc.

Power

Power Indicator N/A
Power Input DC 9~36V
Power Consumption 3W

Mechanical Structure

Box Material and Surface Aluminum Alloy, Full CNC Treated, Anodizing and Anti-scratch Treatment
Color Black or Silver
Mounting Method VESA Mounting 75 ¡Á75mm
Cooling System Passive Cooling

Operation

Operating Temperature -10~60¡æ
Storage Temperature -20~70¡æ
Relative Humidity 0%~95%(Non-Condensation)
Box Material and Surface Die-Casting Aluminum Chassis
Vibration 50 ~ 500 Hz, 1.5G, 0.15mm Peak to Peak
Shock 10 G/Peak (11 ms)

Order Information

Rugged Full IP67 ARM Based Box Computer ITD-MNPC-IPAN-RK3568
