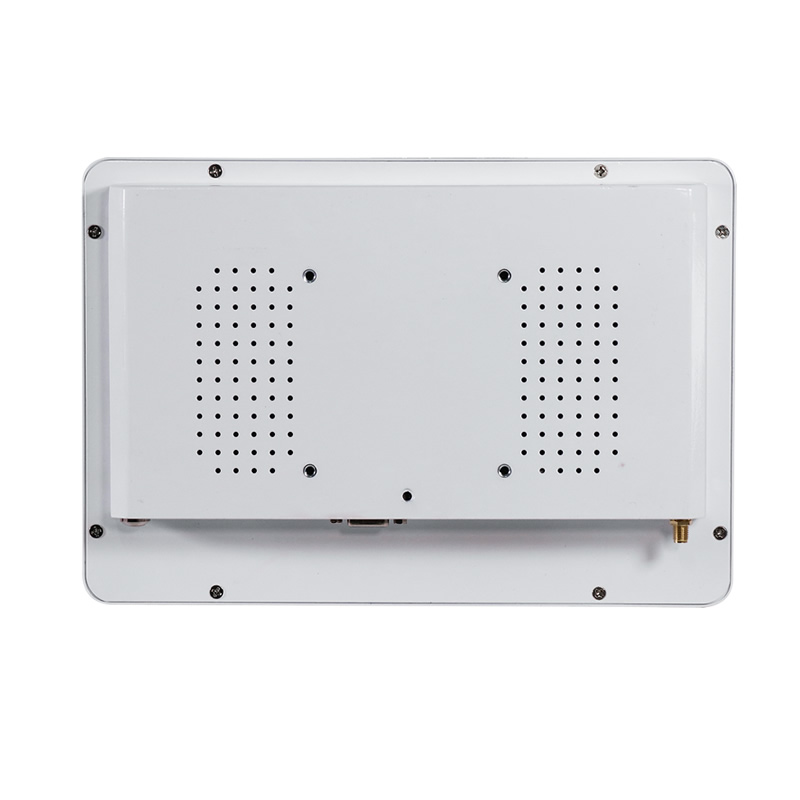

13.3-inch Medical Panel PC for Medical Cart

Products > Industrial Panel PCs > Zero Bezel PCAP Touchscreen Panel PC > 13.3-inch Medical Panel PC for Medical Cart

BENEFITES
- Improved Efficiency in Patient Care: Medical panel PCs enable healthcare professionals to quickly access patient records, medical history, and other critical information at the point of care. This reduces wait times, enhances decision-making, and improves overall care quality.
- Durable and Hygienic Design: Water- and dust-resistant, with antimicrobial surfaces for easy cleaning and disinfection.
- User-Friendly Touchscreen Interface: Intuitive, fast, and accurate input, even with gloved hands, ideal for busy healthcare settings.
- Seamless Integration: Compatible with EHRs, medical imaging systems, and other healthcare IT infrastructure, ensuring smooth data management.
- High-Resolution Displays: Crystal-clear visuals for patient data and diagnostic images, ensuring accuracy and enhancing decision-making.
- Compliance and Security: Fully compliant with healthcare regulations like HIPAA, ensuring secure and reliable patient data handling.

OVERVIEW
ITD’s Medical Panel PC is designed to meet the evolving needs of the healthcare industry, providing a reliable and efficient solution for medical environments. These all-in-one devices combine powerful performance, ease of use, and hygiene-friendly features to enhance patient care and streamline clinical workflows. Perfectly suited for hospitals, clinics, and healthcare facilities, ITD’s Medical Panel PCs offer a durable, high-performance platform that supports a range of healthcare applications, from electronic health records (EHR) access to patient monitoring and medical imaging. Featuring a high-resolution touchscreen, our devices ensure quick, accurate data entry and easy interaction, even in fast-paced or critical situations.

Medical Panel PC
Model Name		ITD13PPCT5K**-HC
IP Rating		IP65 Front Panel
PC Systems Options
ARM Android Based RK3288(RK3566/RK3399 optional)	X86 Based		X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel? Celeron J1900/J4125/J6412		CPU: Intel Core i3/i5/i7 (4th/5th/6th/7th/8th/10th/11th 12th, 13th Gen. optional)
Chipset: Rockchip	Chipset: Intel? SOC		Chipset: Intel? SOC
Memory: 2G, max. 4G	Memory: 4GB(Max. 16GB)		Memory: 4GB(Max. 64GB)
HDD/SSD: 16G, max. 128G	HDD/SSD: 1×MSATA, 1×SATA 1×M.2(available for J4125/J6412)		HDD/SSD: 1×MSATA, 1×SATA 1×M.2
1×HDMI (optional)	1×VGA, 1×HDMI		1×VGA, 1×HDMI
2×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	2×COM(RS232/422/485)		2×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: COM port	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
Android, Linux Supported	Windows 7/10/11/Embedded/IoT, Linux Supported		Windows 7/10/11/Embedded/IoT, Linux Supported
LCD Panel
Screen Diagonal (Inch/cm)		13.3”
Display Active Screen Size (mm)		293.42 (H)X164.97(V)
Aspect Ratio		16:9
Physical Resolution		1920*1080
Maximum Resolution Supported		1920*1080
Colors		16.7M
Brightness (cd/m2)		300nits
Contrast Ratio		800:1
View Angels		80/80/80/80
Backlight/Backlight Lifetime		LED Backlight with 30000 Hours’ Lifetime
Touch Panel
Touch Technology		Projected Capacitive Touch
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Touch Life		50,000,000 Times/Click
Surface Hardness		7H
OS Support		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC 12V
Power Consumption		20W
Order Information
13.3” Medical Panel PC with PCAP Touch, J1900		ITD13PPCT5KJ1-HC
13.3” Medical Panel PC without Touch, J1900		ITD13PPCG1KJ1-HC
13.3” Medical Panel PC with PCAP Touch, J4125		ITD13PPCT5KJ4-HC
13.3” Medical Panel PC without Touch, J4125		ITD13PPCG1KJ4-HC
13.3” Medical Panel PC with PCAP Touch, J6412		ITD13PPCT5KJ6-HC
13.3” Medical Panel PC without Touch, J6412		ITD13PPCG1KJ6-HC
13.3” Medical Panel PC with PCAP Touch, i3		ITD13PPCT5KI3-HC
13.3” Medical Panel PC without touch, i3		ITD13PPCG1KI3-HC
13.3” Medical Panel PC with PCAP Touch, i5		ITD13PPCT5KI5-HC
13.3” Medical Panel PC without Touch, i5		ITD13PPCG1KI5-HC
13.3” Medical Panel PC with PCAP Touch, i7		ITD13PPCT5KI7-HC
13.3” Medical Panel PC without Touch, i7		ITD13PPCG1KI7-HC
