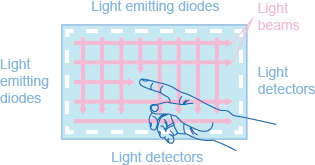

  • Infrared

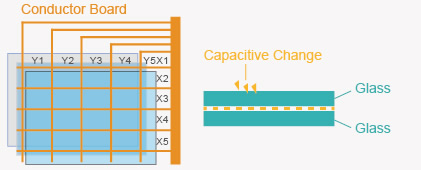

  • PCAP
  • Touch Foil

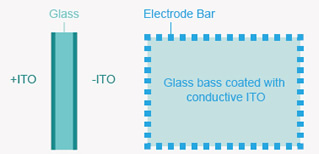

  • Surface Capacitive
  • Surface Light Wave

Resistive Touch Panel
A resistive touch screen panel comprises several layers, the most important of which are two thin, transparent electrically-resistive layers separated by a thin space. These layers face each other with a thin gap between. The top screen (the screen that is touched) has a coating on the underside surface of the screen. Just beneath it is a similar resistive layer on top of its substrate. One layer has conductive connections along its sides, the other along top and bottom. A voltage is applied to one layer, and sensed by the other. When an object, such as a fingertip or stylus tip, presses down onto outer surface, the two layers touch to become connected at that point: The panel then behaves as a pair of voltage dividers, one axis at a time. By rapidly switching between each layer, the position of a pressure on the screen can be read.

Benefits
- Stable, drift-free operation
- Low cost, economical
- Broad input flexibility
- Contamination resistance
- Accuracy in high-use applications
- Long product life
- Can be sensed by a finger, gloved hand, fingernail, or objects
- Meets NEMA 4/4x/12 and IP65 standards

Application
It’s mainly used in POS, industrial, medical, restaurants, factories and transportation applications.

ITD Resistive Touch Products
From 5.7” To 24”
