OVERVIEW

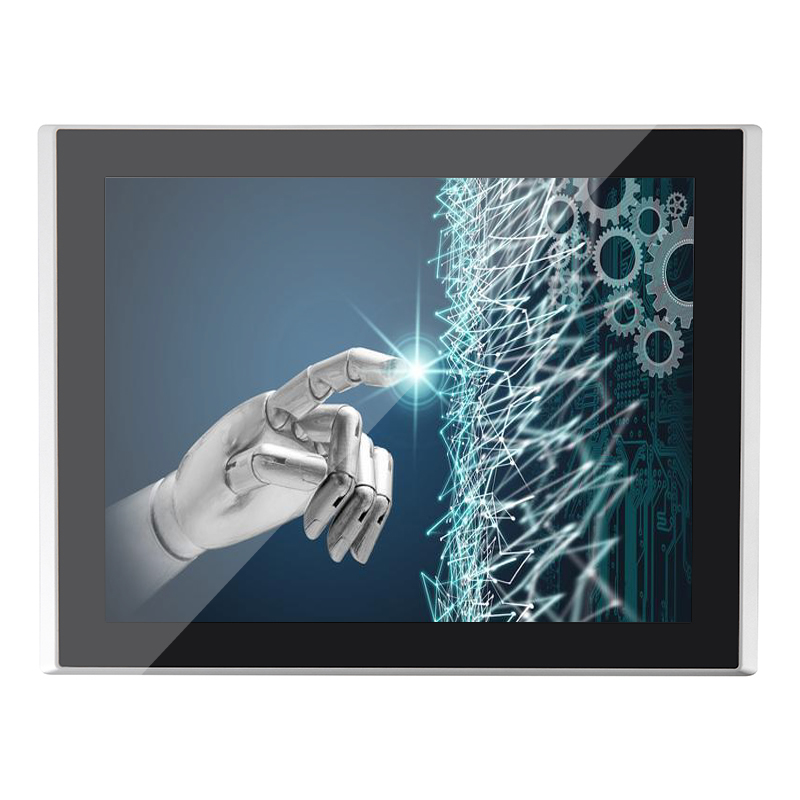

The ITD 10.4" Industrial HMI Panel PC is a rugged, fanless solution designed for reliable performance in factory automation, kiosks, transportation, and other demanding environments. Powered by Intel? J6412, N97, or 4th–12th Gen U-Series Core? i3/i5/i7 processors, it delivers strong computing capability with low power consumption. The 10.4-inch true-flat touchscreen features an IP65-rated front panel for dust and water resistance, while a wide 9–36 V DC input ensures stable operation in diverse installations. Flexible I/O connectivity—including multiple USB and COM ports, HDMI, and optional IDOOR expansion for extra LAN, COM, or GPIO—enables seamless integration with industrial equipment. With options for 3G/4G, 5G, Wi-Fi, and Bluetooth, this panel PC offers exceptional durability, connectivity, and performance for mission-critical industrial applications.

Industrial HMI Touch Panel PC
Model Name	ITD10PPCT5B-xxxx
IP Rating	IP65 Front Panel
PC Systems Options

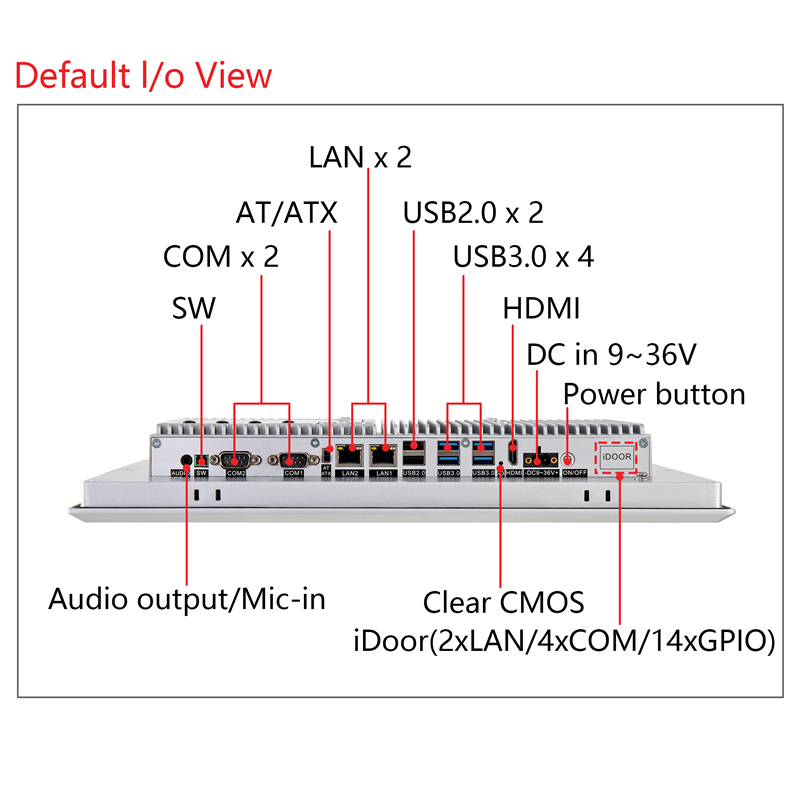

X86 Based CPU: Intel Celeron J900/J6412/N97  Chipset: Intel Elkhart Lake Memory: J6412/N97: 1 × DDR4 SODIMM, Max.16GB J1900: 1 × DDR3 SODIMM, Max. 8GB Storage: 1 × M.2 2280 SSD (SATA/ NVMe), 1 × SATA (2.5” SATA) I/O: 2 × 2.5 GbE RJ45 Intel? i225V 4 × USB3.0, 2 × USB2.0 2 × DB-9 COM1&COM2, RS-232/485 1 × Audio Line-out/Mic-in 2 × 8Ω 1W Audio AMP out (Optional) 1 × Remote Switch Phoenix 1 × AT/ATX Switch 1 × HDMI 1 × IDOOR (2×LAN / 4×COM / 14×GPIO Optional) Expansion: Mini-PCIe×1 Full-size, Supports WiFi/Bluetooth/4G(J1900) M.2 2230×1 (N97.J6412)	X86 Based
	CPU: lntel Core 4th~12th Generation-U i3/i5/i7
	Chipset: Intel SoC
	Memory: DDR4 SODIMM×2
	Storage: 1 × M.2 2280 SSD (SATA/NVMe), 1 × SATA (2.5” SATA)
	I/O: 2 × GbE RJ45 Intel i210-AT 4 × USB3.0, 2 × USB2.0
	2 × DB-9 COM1&COM2, RS-232/485
	1 × Audio Line-out/Mic-in
	2 × 8Ω 1W Audio AMP out (Optional)
	1 × Remote Switch Phoenix 1 × AT/ATX Switch 1 × HDMI 1 × IDOOR (2×LAN / 4×COM / 14×GPIO Optional)
	Expansion: Mini-PCle × 1 Full-size with SIM Card for 3G/4G M.2 Key E × 1 for WIFI/BT; M.2 Key B × 1 for 5G
LCD Panel
Screen Diagonal (Inch)	10.4”
Display Active Screen Size (cm)	211.2(W)×158.4(H) mm
Aspect Ratio	4:3
Physical Resolution	1024×768
Maximum Resolution Supported	1920×1080
Colors	262K/16.7M
Brightness (cd/m2)	350
Contrast Ratio	900:1
View Angels	75/75/75/75
Backlight/Backlight Lifetime	LED Backlight with 50000Hours'Lifetime
Touch Panel
Touch Options	Projected Capacitive Touch Panel, 5 Wires Resistive Touch Panel
Touch Drivers	Windows 7/8/10/11, Linux, Android, Mac
Operation
Operating Temperature Range	-20~60°C
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	DC12V (DC 9-36V optional)
Power Consumption	20W
Order Information
10.4” Industrial HMI PCAP Touch Panel PC with N97	ITD10PPCT5B-N97
10.4” Industrial HMI Resistive Touch Panel PC with N97	ITD10PPCT1B-M97
10.4” Industrial HMI PCAP Touch Panel PC with J6412	ITD10PPCT5B-J6412
10.4” Industrial HMI Resistive Touch Panel PC with J6412	ITD10PPCT1B-J6412
10.4” Industrial HMI PCAP Touch Panel PC with i5-4210U	ITD10PPCT5B-4210U
10.4” Industrial HMI Resistive Touch Panel PC with i3-5005U	ITD10PPCT1B-5005U
10.4” Industrial HMI PCAP Touch Panel PC with i5-6300U	ITD10PPCT5B-6300U
10.4” Industrial HMI Resistive Touch Panel PC with i5-7200U	ITD10PPCT1B-7200U
10.4” Industrial HMI PCAP Touch Panel PC with i7-7500U	ITD10PPCT5B-7500U
10.4” Industrial HMI Resistive Touch Panel PC with i5-8250U	ITD10PPCT1B-8250U
10.4” Industrial HMI PCAP Touch Panel PC with i3-1115G4	ITD10PPCT5B-1115G4
10.4” Industrial HMI Resistive Touch Panel PC with i5-1135G7	ITD10PPCT1B-1135G7
10.4” Industrial HMI PCAP Touch Panel PC with i3-1215U	ITD10PPCT5B-1215U
10.4” Industrial HMI Resistive Touch Panel PC with i5-1235U	ITD10PPCT1B-1235U
10.4” Industrial HMI Resistive Touch Panel PC with i7-1255U	ITD10PPCT1B-1255U
