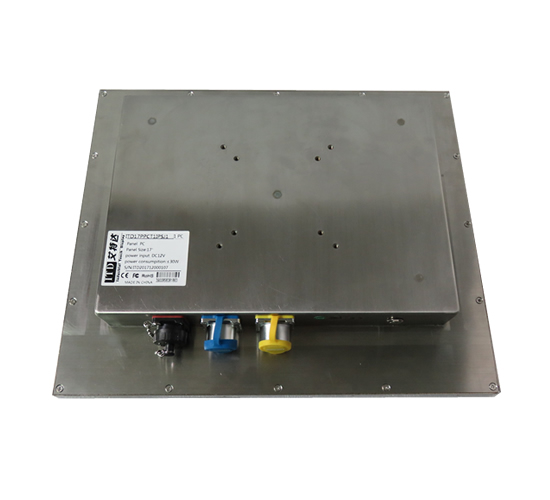

Full IP65/IP66 High Brightness Touchscreen Monitor

Model Name

ITD10CMG1IPHBA1

IP Rating

Full IP65/IP66(IP67 optional)

LCD Panel

Screen Diagonal (Inch/cm)

12.1”

Display Active Screen Size (mm)

246.0(H) ×184.5(V)

Aspect Ratio

4:3

Physical Resolution

800×600(1024×768 optional)

Maximum Resolution Supported

1920×1080

Colors

16.7M

Brightness (cd/m2)

1000 cd/m2

Contrast Ratio

600:1

View Angels

80/80/70/60

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours’ Lifetime

Touch Panel

Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Input / Output

Video Input

1 × VGA

N/A

1 × HDMI(Optional)

Audio

N/A

Touch Connector

1 × USB(Optional)

Power Connector

1 × DC2.0

Operation

Operating Temperature Range

-10~60°C (-20~70°C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

N/A

Power Input

DC 12V

Power Consumption

18W

Order Information

12.1”1000nits Full IP65/IP66 LCD Monitor with Resistive Touch, Aluminum Housing

ITD12CMT1IPHBA1

12.1”1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing

ITD12CMT5IPHBA1

12.1”1000nits Full IP65/IP66 LCD Monitor with Resistive Touch, Stainless Steel Housing

ITD12CMT1IPHBS1

12.1”1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing

ITD12CMT5IPHBS1

12.1”1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing

ITD12CMG1IPHBA1

12.1”1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing

ITD12CMG1IPHBS1
