BENEFITES -Exceptional quality and highly engineered industrial monitors -Optional touchscreens like resistive, IR, SAW, PCAP -All steel construction designed for harsh and industrialenvironments -Easy-to-install cabinet and open frame rear-mount display -Multiple mounting options (75/100mm VESA mount and sidebrackets) -Accuracy in high-use applications -Long lasting product cycle for continuity thru all phases of project
ITD industrial open frame displays deliver cost-effective, high quality display solutions for OEMs and system integrators requiring displays integrated into an application. ITDopen frame LCD monitorsare packaged in a steel enclosureand durable glass front surface provide the durability neededfor demanding industrial environments. These displays are ideal for applications from retail to gaming, hospitality to kiosks and industrial machinery builder applications.

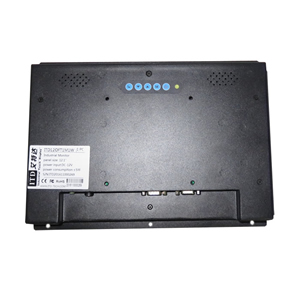

Open Frame LCD Monitor
Model Name
ITD12OFN1M1W
IP Rating
N/A
LCD Panel
Screen Diagonal (Inch/cm)
12.1¡±
Display Active Screen Size (mm)
261.12(H)¡Á163.2(V)mm
Aspect Ratio
16:10
Physical Resolution
1280¡Á800
Maximum Resolution Supported
1920¡Á1200
Colors
16.2M
Brightness (cd/m2)
300 cd/m2
Contrast Ratio
800:1
View Angels
80/80/65/80
Backlight/Backlight Lifetime
LED Backlight with 50000 Hours¡¯ Lifetime
Touch Panel
Touch Options
Resistive,IR,SAW,PCAP
Touch Drivers
Windows, Linux, Android, Mac, Raspberry Pi
Input / Output
Video Input
1 ¡Á VGA
1 ¡Á DVI-I
1 ¡Á HDMI
Audio
1 ¡Á PC-Audio
Touch Connector
1 ¡Á USB
Power Connector
1 ¡Á DC2.0
Operation
Operating Temperature Range
-10~60¡ãC (-20~70¡ãCOptional)
Humidity Range (RH)
10-90%
24/7/365 Use
Supported
Power
Power Indicator
Green LED
Power Input
DC 12V
Power Consumption
18W
Order Information
12.1¡±16:10 Open Frame LCD Monitor with Resistive Touch
ITD12OFT1M1W
12.1¡±16:10 Open Frame LCD Monitor with IR Touch
12.1¡±16:10 Open frame monitor LCD monitor with projected capacitive touch
¡¡¡¡
