Products > Industrial Panel PCs > Industrial HMI Touch Panel PCs  >  12.1 inch Wide Screen Industrial HMI Touch Panel PC

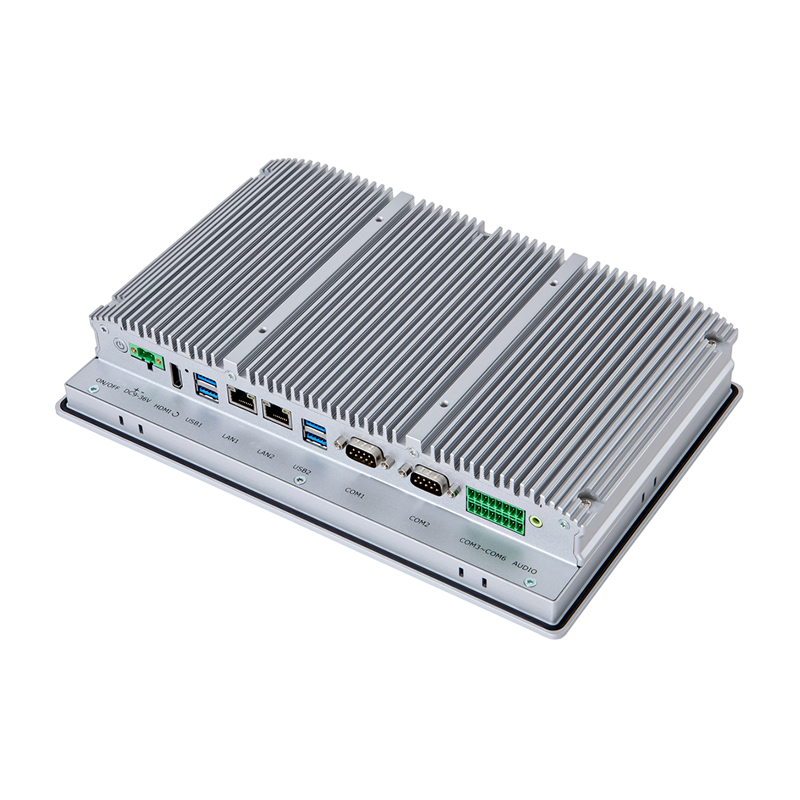

12.1 inch Wide Screen Industrial HMI Touch Panel PC
BENEFITES
- High-Performance Computing: Choice of Intel? J6412, N97, or 4th–12th Gen U-Series Core? i3/i5/i7 processors for scalable processing power
- Wide-Format High-Resolution Display: 12.1-inch wide-screen LCD with 1280 × 800 resolution, offering a larger viewing area for industrial interfaces and real-time monitoring.
- Powerful Industrial Processing: Supports Intel? J6412, N97, and 4th–12th Gen U-Series Core? i3/i5/i7 processors for robust performance in automation, HMI, and data acquisition applications.
- Rugged Fanless Design: True-flat front with IP65-rated protection, all-aluminum enclosure, and fanless operation for silent, reliable performance in dusty or humid environments.
- Wide Voltage & Flexible Mounting: 9–36 V DC wide-range input, AT/ATX power mode selection, and support for panel or VESA mounting.
- Versatile I/O Connectivity： Multiple interfaces including four USB 3.0, two USB 2.0, dual DB-9 COM (RS-232/485), HDMI, audio line-out/mic-in, Phoenix remote switch, and AT/ATX power control.
- Enhanced Industrial Reliability： Wide operating temperature range, low-power fanless operation, and rugged design ensure stable long-term performance in industrial settings.
- Modular Expansion & Networking Options
?- IDOOR slot for optional LAN, COM, or GPIO modules.
?- Full-size Mini-PCIe slot with SIM card support for 3G/4G connectivity.
?- M.2 Key E for Wi-Fi/Bluetooth, M.2 Key B for 5G.
OVERVIEW
Powered by Intel? J6412, N97, or 4th–12th Gen U-Series Core? processors, it delivers smooth multitasking and high-performance computing in a fanless, energy-efficient design. Its 12.1-inch wide-format touchscreen provides enhanced viewing area, wide-angle IPS display, and multi-touch capability for precise user interaction. The IP65-rated front panel ensures protection against dust and moisture, while a flexible power input range and optional wireless connectivity (Wi-Fi, Bluetooth, 4G/5G) allow versatile deployment in factories, kiosks, and harsh industrial sites.

Industrial HMI Touch Panel PC

Model Name ITD12PPCT5B-xxxxW
IP Rating IP65 Front Panel

PC Systems Options

X86 Based
CPU: Intel Celeron J900/J6412/N97

Chipset: Intel Elkhart Lake
Memory: J6412/N97: 1 × DDR4 SODIMM, Max.16GB
J1900: 1 × DDR3 SODIMM, Max. 8GB
Storage: 1 × M.2 2280 SSD (SATA/ NVMe), 1 × SATA (2.5” SATA)
I/O: 2 × 2.5 GbE RJ45 Intel? i225V
4 × USB3.0, 2 × USB2.0
2 × DB-9 COM1&COM2, RS-232/485
1 × Audio Line-out/Mic-in
2 × 8Ω 1W Audio AMP out (Optional)
1 × Remote Switch Phoenix
1 × AT/ATX Switch
1 × HDMI
1 × IDOOR (2×LAN / 4×COM / 14×GPIO Optional) Expansion: Mini-PCIe×1 Full-size, Supports
WiFi/Bluetooth/4G(J1900) M.2 2230×1 (N97.J6412)		 X86 Based
CPU: lntel Core 4th~12th Generation-U i3/i5/i7
Chipset: Intel SoC
Memory: DDR4 SODIMM×2


Storage: 1 × M.2 2280 SSD (SATA/NVMe), 1 × SATA (2.5” SATA)
I/O: 2 × GbE RJ45 Intel i210-AT
4 × USB3.0, 2 × USB2.0
2 × DB-9 COM1&COM2, RS-232/485
1 × Audio Line-out/Mic-in
2 × 8Ω 1W Audio AMP out (Optional)
1 × Remote Switch Phoenix
1 × AT/ATX Switch
1 × HDMI
1 × iDOOR (2×LAN / 4×COM / 14×GPIO Optional)
Expansion: Mini-PCle × 1 Full-size with SIM Card for 3G/4G
M.2 Key E × 1 for WIFI/BT; M.2 Key B × 1 for 5G

LCD Panel

Screen Diagonal (Inch) 12.1”
Display Active Screen Size (cm) 261.12(W)×163.2(H) mm
Aspect Ratio 16:10
Physical Resolution 1280×8080
Maximum Resolution Supported 1920×1200
Colors  262K/16.7M
Brightness (cd/m2) 400
Contrast Ratio 1200:1
View Angels 85/85/85/85
Backlight/Backlight Lifetime LED Backlight with 30000Hours'Lifetime

Touch Panel

Touch Options Projected Capacitive Touch Panel, 5 Wires Resistive Touch Panel
Touch Drivers Windows 7/8/10/11, Linux, Android, Mac

Operation

Operating Temperature Range -20~70°C
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Indicator Green LED
Power Input DC12V (DC 9-36V optional)
Power Consumption 25W

Order Information

12.1” 16:10 Industrial HMI PCAP Touch Panel PC with N97 ITD12PPCT5B-N97W
12.1” 16:10 Industrial HMI Resistive Touch Panel PC with N97 ITD12PPCT1B-M97W
12.1” 16:10 Industrial HMI PCAP Touch Panel PC with J6412 ITD12PPCT5B-J6412W
12.1” 16:10 Industrial HMI Resistive Touch Panel PC with J6412 ITD12PPCT1B-J6412W
12.1” 16:10 Industrial HMI PCAP Touch Panel PC with i5-4210U ITD12PPCT5B-4210UW
12.1” 16:10 Industrial HMI Resistive Touch Panel PC with i3-5005U ITD12PPCT1B-5005UW
12.1” 16:10 Industrial HMI PCAP Touch Panel PC with i5-6300U ITD12PPCT5B-6300UW
12.1” 16:10 Industrial HMI Resistive Touch Panel PC with i5-7200U ITD12PPCT1B-7200UW
12.1” 16:10 Industrial HMI PCAP Touch Panel PC with i7-7500U ITD12PPCT5B-7500UW
12.1” 16:10 Industrial HMI Resistive Touch Panel PC with i5-8250U ITD12PPCT1B-8250UW
12.1” 16:10 Industrial HMI PCAP Touch Panel PC with i3-1115G4 ITD12PPCT5B-1115G4W
12.1” 16:10 Industrial HMI Resistive Touch Panel PC with i5-1135G7 ITD12PPCT1B-1135G7W
12.1” 16:10 Industrial HMI PCAP Touch Panel PC with i3-1215U ITD12PPCT5B-1215UW
12.1” 16:10 Industrial HMI Resistive Touch Panel PC with i5-1235U ITD12PPCT1B-1235UW
12.1” 16:10 Industrial HMI Resistive Touch Panel PC with i7-1255U ITD12PPCT1B-1255UW
