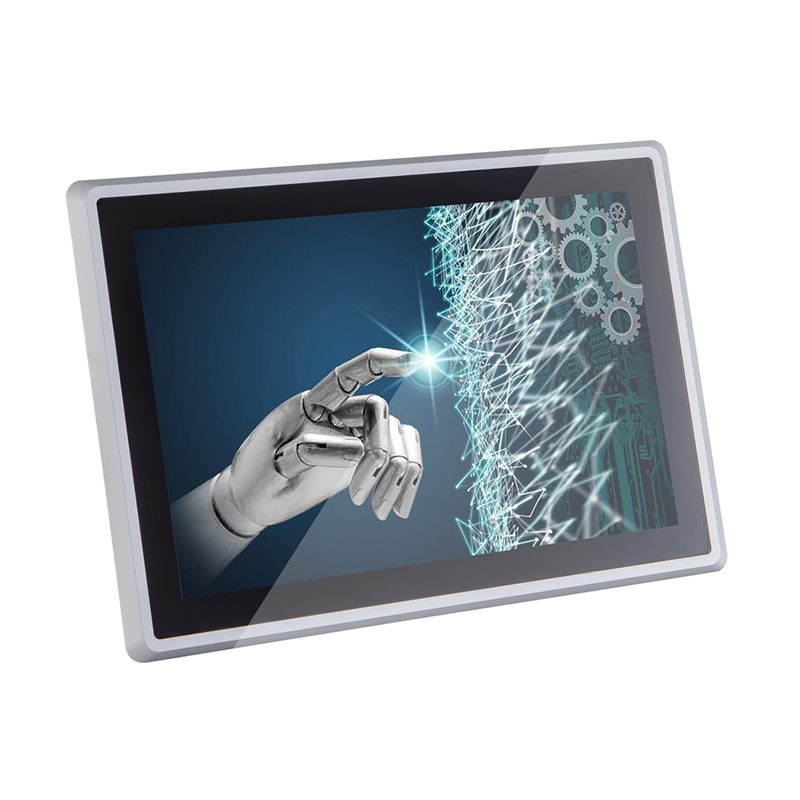

13.3 inch Industrial HMI Touch Panel PC
BENEFITES
- Large Wide-Screen Display: 13.3-inch LCD with 1920 × 1080 resolution, providing an expanded viewing area for industrial HMI applications, data dashboards, and interactive controls.
- High-Performance Industrial CPU Options: Supports Intel? J6412, N97, and 4th–12th Gen U-Series Core? i3/i5/i7 processors for demanding industrial computing tasks.
- Rugged, Fanless Construction: True-flat touchscreen with IP65-rated front panel and aluminum-alloy enclosure ensures long-term durability, silent operation, and protection from dust and moisture.
- Flexible Power Input & Mounting: Wide 9–36 V DC input with AT/ATX mode selection; supports VESA and panel mounting for versatile installation.

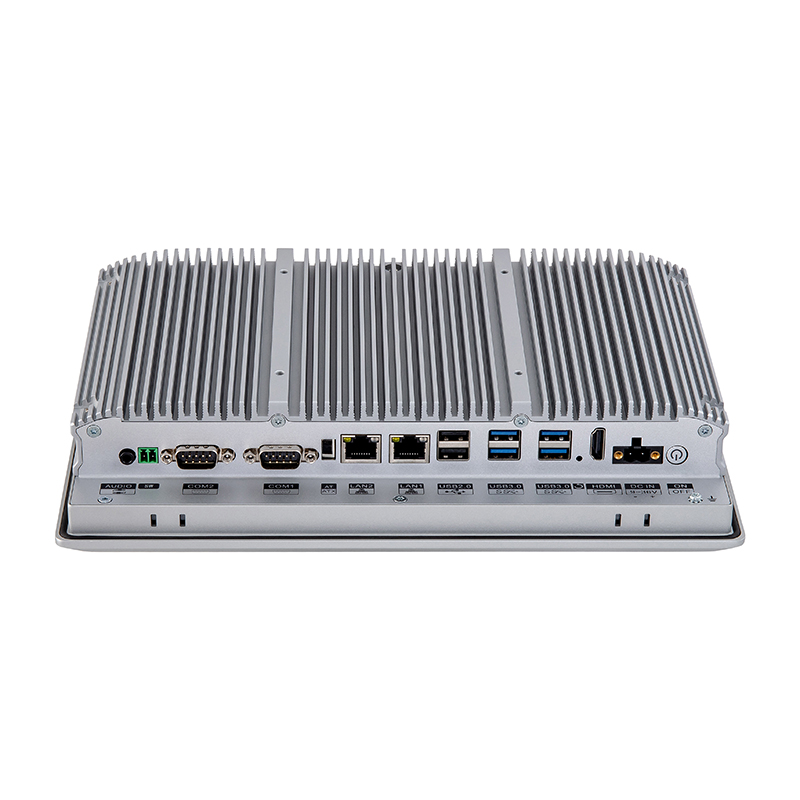

- Rich I/O Connectivity: Includes four USB 3.0 and two USB 2.0 ports, two DB-9 COM ports (RS-232/485), HDMI, audio line-out/mic-in, Phoenix remote switch interface, and AT/ATX power control.
- Modular Expansion & Wireless Options
  - IDOOR slot for optional LAN, COM, or GPIO modules.
  - Full-size Mini-PCIe slot with SIM card for 3G/4G connectivity.
  - M.2 Key E for Wi-Fi/Bluetooth and M.2 Key B for 5G.
- Industrial-Grade Reliability
  Wide operating temperature range and fanless, low-power design ensures stable and long-term operation in challenging industrial conditions.
OVERVIEW
The ITD 13.3" Wide Screen Industrial HMI Touch Panel PC is engineered for industrial environments that demand a larger workspace for complex visualization, machine monitoring, and interactive control. Featuring Intel? J6412, N97, or 4th–12th Gen U-Series Core? processors, it delivers high-performance computing in a fanless, low-power design. The 13.3-inch wide-format touchscreen offers full-HD resolution with wide viewing angles and responsive multi-touch capability, ensuring precise and intuitive operation. The IP65-rated front panel protects against dust and water, while a wide 9–36 V DC input and optional wireless modules (Wi-Fi, Bluetooth, 4G/5G) enable flexible deployment in factories, kiosks, or harsh industrial environments.


Industrial HMI Touch Panel PC

Model Name ITD13PPCT5B-xxxx
IP Rating IP65 Front Panel

PC Systems Options

X86 Based
CPU: Intel Celeron J6412/N97

Chipset: Intel Elkhart Lake
Memory: J6412/N97: 1 × DDR4 SODIMM, Max.16GB
Storage: 1 × M.2 2280 SSD (SATA/ NVMe), 1 × SATA (2.5” SATA)
I/O: 2 × 2.5 GbE RJ45 Intel? i225V
4 × USB3.0, 2 × USB2.0
2 × DB-9 COM1&COM2, RS-232/485
1 × Audio Line-out/Mic-in
2 × 8Ω 1W Audio AMP out (Optional)
1 × Remote Switch Phoenix
1 × AT/ATX Switch
1 × HDMI
1 × IDOOR (2×LAN / 4×COM / 14×GPIO Optional) Expansion: Mini-PCIe×1 Full-size, Supports
WiFi/Bluetooth/4G(J1900) M.2 2230×1 (N97.J6412)		 X86 Based
CPU: lntel Core 4th~12th Generation-U i3/i5/i7
Chipset: Intel SoC
Memory: DDR4 SODIMM×2
Storage: 1 × M.2 2280 SSD (SATA/NVMe), 1 × SATA (2.5” SATA)
I/O: 2 × GbE RJ45 Intel i210-AT
4 × USB3.0, 2 × USB2.0
2 × DB-9 COM1&COM2, RS-232/485
1 × Audio Line-out/Mic-in
2 × 8Ω 1W Audio AMP out (Optional)
1 × Remote Switch Phoenix
1 × AT/ATX Switch
1 × HDMI
1 × iDOOR (2×LAN / 4×COM / 14×GPIO Optional)
Expansion: Mini-PCle × 1 Full-size with SIM Card for 3G/4G
M.2 Key E × 1 for WIFI/BT; M.2 Key B × 1 for 5G

LCD Panel

Screen Diagonal (Inch) 13.3”
Display Active Screen Size (cm) 293.76(W)×165.24(H) mm
Aspect Ratio 16:9
Physical Resolution 1920×1080
Maximum Resolution Supported 1920×1080
Colors  16.7M
Brightness (cd/m2) 300
Contrast Ratio 800:1
View Angels 85/85/85/85
Backlight/Backlight Lifetime LED Backlight with 30000Hours'Lifetime

Touch Panel

Touch Options Projected Capacitive Touch Panel, 5 Wires Resistive Touch Panel
Touch Drivers Windows 7/8/10/11, Linux, Android, Mac

Operation

Operating Temperature Range -10~60°C
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Indicator Green LED
Power Input DC12V (DC 9-36V optional)
Power Consumption 25W

Order Information

13.3” Industrial HMI PCAP Touch Panel PC with N97 ITD13PPCT5B-N97
13.3” Industrial HMI Resistive Touch Panel PC with N97 ITD13PPCT1B-M97
13.3” Industrial HMI PCAP Touch Panel PC with J6412 ITD13PPCT5B-J6412
13.3” Industrial HMI Resistive Touch Panel PC with J6412 ITD13PPCT1B-J6412
13.3” Industrial HMI PCAP Touch Panel PC with i5-4210U ITD13PPCT5B-4210U
13.3” Industrial HMI Resistive Touch Panel PC with i3-5005U ITD13PPCT1B-5005U
13.3” Industrial HMI PCAP Touch Panel PC with i5-6300U ITD13PPCT5B-6300U
13.3” Industrial HMI Resistive Touch Panel PC with i5-7200U ITD13PPCT1B-7200U
13.3” Industrial HMI PCAP Touch Panel PC with i7-7500U ITD13PPCT5B-7500U
13.3” Industrial HMI Resistive Touch Panel PC with i5-8250U ITD13PPCT1B-8250U
13.3” Industrial HMI PCAP Touch Panel PC with i3-1115G4 ITD13PPCT5B-1115G4
13.3” Industrial HMI Resistive Touch Panel PC with i5-1135G7 ITD13PPCT1B-1135G7
13.3” Industrial HMI PCAP Touch Panel PC with i3-1215U ITD13PPCT5B-1215U
13.3” Industrial HMI Resistive Touch Panel PC with i5-1235U ITD13PPCT1B-1235U
13.3” Industrial HMI Resistive Touch Panel PC with i7-1255U ITD13PPCT1B-1255U
