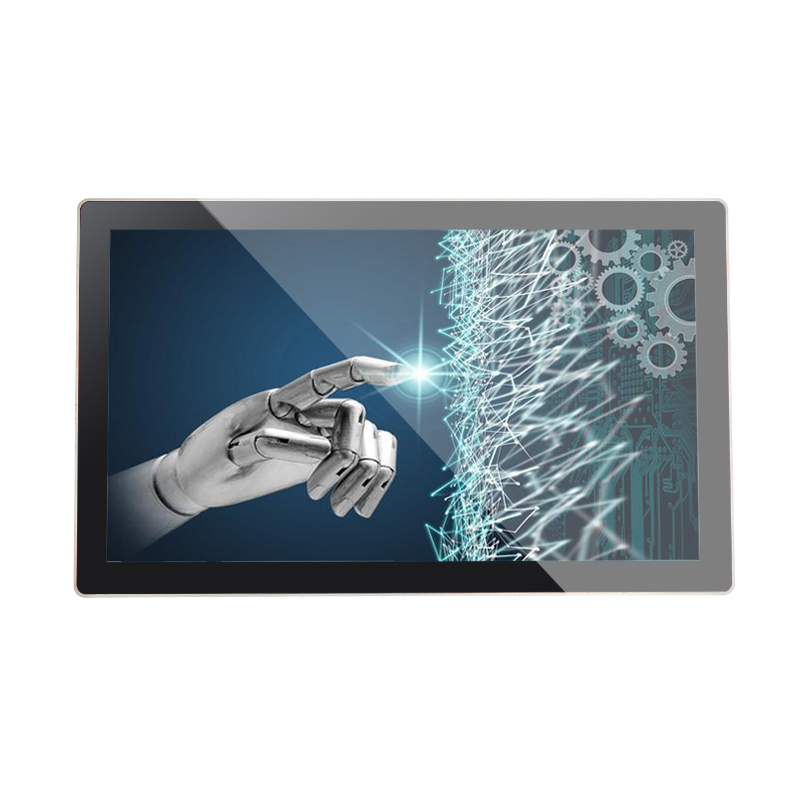

18.5 inch Industrial HMI Touch Panel PC
BENEFITES
- Large Industrial-Grade Display: 18.5-inch widescreen LCD with 1920 × 1080 full-HD resolution, offering ample screen space for machine monitoring, HMI dashboards, and multi-window applications.
- Powerful CPU Options: Supports Intel? J6412, N97, and 4th–12th Gen U-Series Core? i3/i5/i7 processors for high-performance multitasking in industrial control environments.
- Rugged, Fanless Design: IP65-rated true-flat front panel with aluminum-alloy chassis for dust and water protection; fanless operation ensures silent, energy-efficient, and reliable performance.
- Wide Voltage & Flexible Installation: 9–36 V DC input with AT/ATX selection, supporting panel, VESA, or custom mounting solutions.

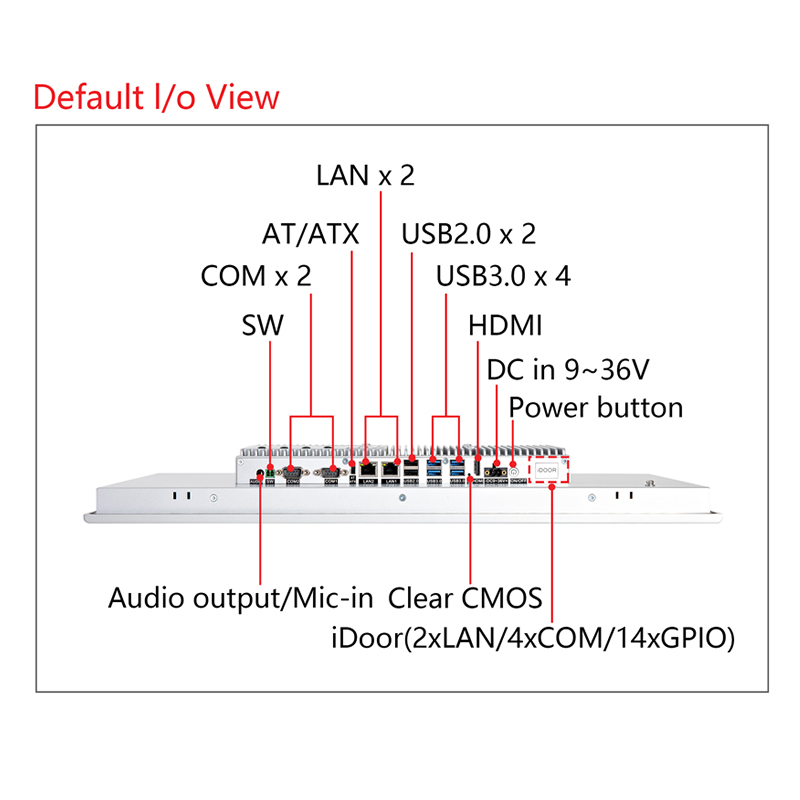

- Extensive I/O Connectivity: Multiple USB ports (4 × USB 3.0, 2 × USB 2.0), dual DB-9 COM ports (RS-232/485), HDMI output, audio line-out/mic-in, Phoenix remote switch interface, and AT/ATX power control.
- Expansion & Networking Options
  - IDOOR slot for optional LAN, COM, or GPIO modules.
?- Full-size Mini-PCIe slot with SIM card support for 3G/4G connectivity.
?- M.2 Key E for Wi-Fi/Bluetooth, M.2 Key B for 5G.
- Industrial Reliability: Designed for continuous operation with wide temperature range support, robust construction, and low-maintenance fanless operation suitable for factories, kiosks, and control rooms.
OVERVIEW
Featuring Intel? J6412, N97, or 4th–12th Gen U-Series Core? processors, it delivers robust performance in a fanless, low-power design. The 18.5-inch widescreen touchscreen provides a spacious interface with full-HD resolution, ensuring clear visualization of complex data and machine controls. Its IP65-rated front panel protects against dust and water, and the rugged die-cast aluminum chassis guarantees durability in harsh industrial environments. With wide-range 9–36 V DC input and flexible I/O options including HDMI, USB, COM ports, and expansion slots for 3G/4G/5G or Wi-Fi/Bluetooth connectivity, this panel PC supports seamless integration and long-term reliability in demanding industrial scenarios.


Industrial HMI Touch Panel PC

Model Name ITD18PPCT5B-xxxx
IP Rating IP65 Front Panel

PC Systems Options

X86 Based
CPU: Intel Celeron J6412/N97

Chipset: Intel Elkhart Lake
Memory: J6412/N97: 1 × DDR4 SODIMM, Max.16GB
Storage: 1 × M.2 2280 SSD (SATA/ NVMe), 1 × SATA (2.5” SATA)
I/O: 2 × 2.5 GbE RJ45 Intel? i225V
4 × USB3.0, 2 × USB2.0
2 × DB-9 COM1&COM2, RS-232/485
1 × Audio Line-out/Mic-in
2 × 8Ω 1W Audio AMP out (Optional)
1 × Remote Switch Phoenix
1 × AT/ATX Switch
1 × HDMI
1 × IDOOR (2×LAN / 4×COM / 14×GPIO Optional) Expansion: Mini-PCIe×1 Full-size, Supports
WiFi/Bluetooth/4G(J1900) M.2 2230×1 (N97.J6412)		 X86 Based
CPU: lntel Core 4th~12th Generation-U i3/i5/i7
Chipset: Intel SoC
Memory: DDR4 SODIMM×2
Storage: 1 × M.2 2280 SSD (SATA/NVMe), 1 × SATA (2.5” SATA)
I/O: 2 × GbE RJ45 Intel i210-AT
4 × USB3.0, 2 × USB2.0
2 × DB-9 COM1&COM2, RS-232/485
1 × Audio Line-out/Mic-in
2 × 8Ω 1W Audio AMP out (Optional)
1 × Remote Switch Phoenix
1 × AT/ATX Switch
1 × HDMI
1 × iDOOR (2×LAN / 4×COM / 14×GPIO Optional)
Expansion: Mini-PCle × 1 Full-size with SIM Card for 3G/4G
M.2 Key E × 1 for WIFI/BT; M.2 Key B × 1 for 5G

LCD Panel

Screen Diagonal (Inch) 18.5”
Display Active Screen Size (cm) 408.96(W)×230.04(H) mm
Aspect Ratio 16:9
Physical Resolution 1920×1080
Maximum Resolution Supported 1920×1080
Colors  16.7M
Brightness (cd/m2) 350
Contrast Ratio 1000:1
View Angels 85/85/85/85
Backlight/Backlight Lifetime LED Backlight with 30000Hours'Lifetime

Touch Panel

Touch Options Projected Capacitive Touch Panel, 5 Wires Resistive Touch Panel
Touch Drivers Windows 7/8/10/11, Linux, Android, Mac

Operation

Operating Temperature Range -10~60°C
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Indicator Green LED
Power Input DC12V (DC 9-36V optional)
Power Consumption 30W

Order Information

18.5” Industrial HMI PCAP Touch Panel PC with N97 ITD18PPCT5B-N97
18.5” Industrial HMI Resistive Touch Panel PC with N97 ITD18PPCT1B-M97
18.5” Industrial HMI PCAP Touch Panel PC with J6412 ITD18PPCT5B-J6412
18.5” Industrial HMI Resistive Touch Panel PC with J6412 ITD18PPCT1B-J6412
18.5” Industrial HMI PCAP Touch Panel PC with i5-4210U ITD18PPCT5B-4210U
18.5” Industrial HMI Resistive Touch Panel PC with i3-5005U ITD18PPCT1B-5005U
18.5” Industrial HMI PCAP Touch Panel PC with i5-6300U ITD18PPCT5B-6300U
18.5” Industrial HMI Resistive Touch Panel PC with i5-7200U ITD18PPCT1B-7200U
18.5” Industrial HMI PCAP Touch Panel PC with i7-7500U ITD18PPCT5B-7500U
18.5” Industrial HMI Resistive Touch Panel PC with i5-8250U ITD18PPCT1B-8250U
18.5” Industrial HMI PCAP Touch Panel PC with i3-1115G4 ITD18PPCT5B-1115G4
18.5” Industrial HMI Resistive Touch Panel PC with i5-1135G7 ITD18PPCT1B-1135G7
18.5” Industrial HMI PCAP Touch Panel PC with i3-1215U ITD18PPCT5B-1215U
18.5” Industrial HMI Resistive Touch Panel PC with i5-1235U ITD18PPCT1B-1235U
18.5” Industrial HMI Resistive Touch Panel PC with i7-1255U ITD18PPCT1B-1255U
