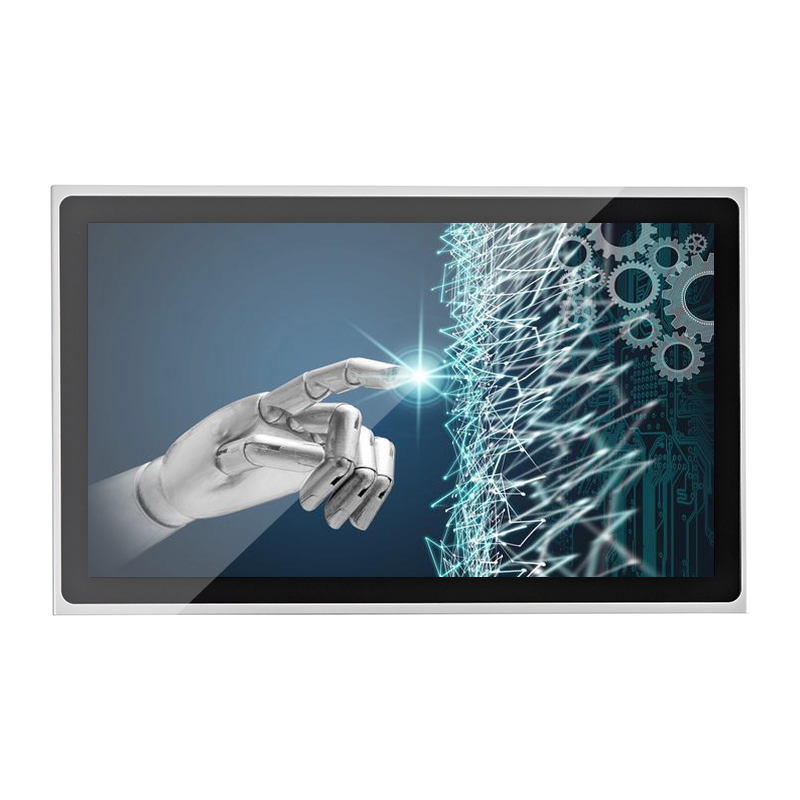

23.8 inch Industrial HMI Touch Screen Panel PC
BENEFITES
- Extra-Large Industrial Display: 23.8-inch LCD with 1920 × 1080 resolution, providing a broad interface for HMI applications, data visualization, and multi-window operation.
- High-Performance Computing: Supports Intel? J6412, N97, and 4th–12th Gen U-Series Core? i3/i5/i7 processors, delivering robust performance for complex industrial applications.
- Rugged Fanless Construction: True-flat IP65-rated front panel and aluminum alloy chassis ensure protection against dust, water, and mechanical stress; fanless design offers silent, low-maintenance operation.
- Flexible Power and Mounting Options: Wide 9–36 V DC input with AT/ATX selection; supports panel, VESA, or custom mounting for diverse industrial installations.

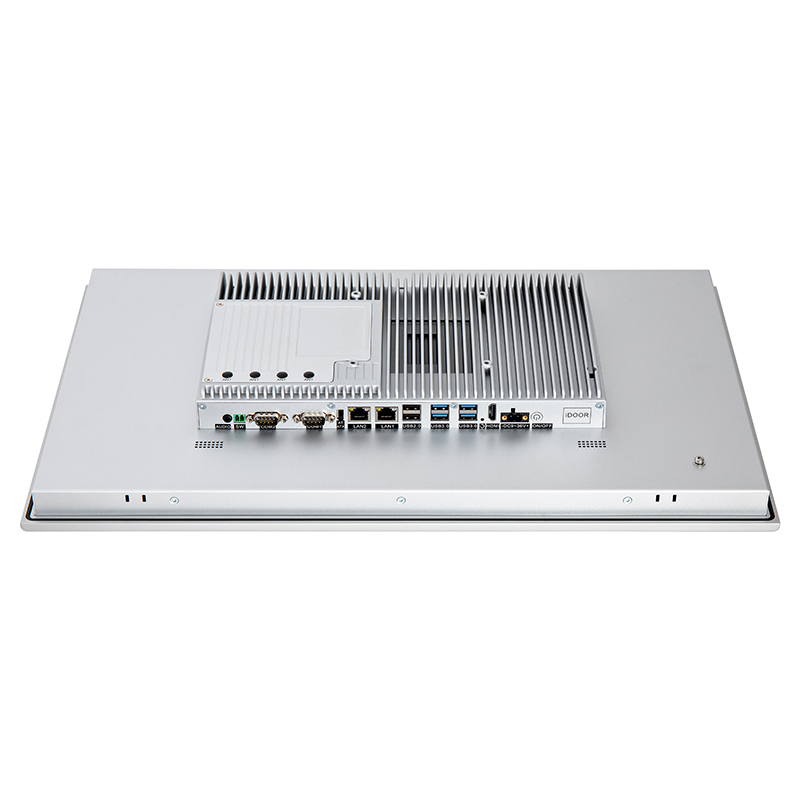

- Comprehensive I/O Connectivity: Four USB 3.0 and two USB 2.0 ports, dual DB-9 COM ports (RS-232/485), HDMI output, audio line-out/mic-in, Phoenix remote switch interface, and AT/ATX power control.
- Industrial Reliability: Designed for continuous operation in harsh environments, with wide operating temperature support, fanless low-power design, and durable construction suitable for factories, control rooms, and industrial kiosks.
OVERVIEW
Powered by Intel? J6412, N97, or 4th–12th Gen U-Series Core? processors, it ensures high-performance computing while maintaining a fanless, energy-efficient design. Its 23.8-inch widescreen display with full-HD resolution provides an expansive workspace for machine interfaces, production monitoring dashboards, and complex control applications. The IP65-rated front panel protects against dust and water ingress, while a rugged aluminum alloy chassis guarantees durability. With flexible 9–36 V DC power input, extensive I/O, and optional wireless modules including Wi-Fi, Bluetooth, 4G/5G, this panel PC is ideal for control rooms, industrial automation, and kiosk applications requiring a large, reliable touchscreen interface.


Industrial HMI Touch Panel PC

Model Name ITD24PPCT5B-xxxx
IP Rating IP65 Front Panel

PC Systems Options

X86 Based
CPU: Intel Celeron J6412/N97

Chipset: Intel Elkhart Lake
Memory: J6412/N97: 1 × DDR4 SODIMM, Max.16GB
Storage: 1 × M.2 2280 SSD (SATA/ NVMe), 1 × SATA (2.5” SATA)
I/O: 2 × 2.5 GbE RJ45 Intel? i225V
4 × USB3.0, 2 × USB2.0
2 × DB-9 COM1&COM2, RS-232/485
1 × Audio Line-out/Mic-in
2 × 8Ω 1W Audio AMP out (Optional)
1 × Remote Switch Phoenix
1 × AT/ATX Switch
1 × HDMI
1 × IDOOR (2×LAN / 4×COM / 14×GPIO Optional) Expansion: Mini-PCIe×1 Full-size, Supports
WiFi/Bluetooth/4G(J1900) M.2 2230×1 (N97.J6412)		 X86 Based
CPU: lntel Core 4th~12th Generation-U i3/i5/i7
Chipset: Intel SoC
Memory: DDR4 SODIMM×2
Storage: 1 × M.2 2280 SSD (SATA/NVMe), 1 × SATA (2.5” SATA)
I/O: 2 × GbE RJ45 Intel i210-AT
4 × USB3.0, 2 × USB2.0
2 × DB-9 COM1&COM2, RS-232/485
1 × Audio Line-out/Mic-in
2 × 8Ω 1W Audio AMP out (Optional)
1 × Remote Switch Phoenix
1 × AT/ATX Switch
1 × HDMI
1 × iDOOR (2×LAN / 4×COM / 14×GPIO Optional)
Expansion: Mini-PCle × 1 Full-size with SIM Card for 3G/4G
M.2 Key E × 1 for WIFI/BT; M.2 Key B × 1 for 5G

LCD Panel

Screen Diagonal (Inch) 23.8”
Display Active Screen Size (cm) 527.04(W)×296.46(H) mm
Aspect Ratio 16:9
Physical Resolution 1920×1080
Maximum Resolution Supported 1920×1080
Colors  16.7M
Brightness (cd/m2) 250
Contrast Ratio 1000:1
View Angels 89/89/89/89
Backlight/Backlight Lifetime LED Backlight with 30000Hours'Lifetime

Touch Panel

Touch Options Projected Capacitive Touch Panel, 5 Wires Resistive Touch Panel
Touch Drivers Windows 7/8/10/11, Linux, Android, Mac

Operation

Operating Temperature Range -10~60°C
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Indicator Green LED
Power Input DC12V (DC 9-36V optional)
Power Consumption 35W

Order Information

23.8” Industrial HMI PCAP Touch Panel PC with N97 ITD24PPCT5B-N97
23.8” Industrial HMI Resistive Touch Panel PC with N97 ITD24PPCT1B-M97
23.8” Industrial HMI PCAP Touch Panel PC with J6412 ITD24PPCT5B-J6412
23.8” Industrial HMI Resistive Touch Panel PC with J6412 ITD24PPCT1B-J6412
23.8” Industrial HMI PCAP Touch Panel PC with i5-4210U ITD24PPCT5B-4210U
23.8” Industrial HMI Resistive Touch Panel PC with i3-5005U ITD24PPCT1B-5005U
23.8” Industrial HMI PCAP Touch Panel PC with i5-6300U ITD24PPCT5B-6300U
23.8” Industrial HMI Resistive Touch Panel PC with i5-7200U ITD24PPCT1B-7200U
23.8” Industrial HMI PCAP Touch Panel PC with i7-7500U ITD24PPCT5B-7500U
23.8” Industrial HMI Resistive Touch Panel PC with i5-8250U ITD24PPCT1B-8250U
23.8” Industrial HMI PCAP Touch Panel PC with i3-1115G4 ITD24PPCT5B-1115G4
23.8” Industrial HMI Resistive Touch Panel PC with i5-1135G7 ITD24PPCT1B-1135G7
23.8” Industrial HMI PCAP Touch Panel PC with i3-1215U ITD24PPCT5B-1215U
23.8” Industrial HMI Resistive Touch Panel PC with i5-1235U ITD24PPCT1B-1235U
23.8” Industrial HMI Resistive Touch Panel PC with i7-1255U ITD24PPCT1B-1255U
