BENEFITES -Exceptional quality and highly engineered industrial/commercial panel computer -High Performance Processor, Graphics, Memory and Power -Edge to edge design with true flat surface, easy to clean without bezels -Ten independent touch points, plug and play -All steel construction designed for industrial or public environments -Easy-to-install embedded/panel mounting with clamps -Robust design with aluminum frame NEMA 4/ IP65 front panel -Long lasting product cycle for continuity thru all phases of project
OVERVIEW ITD Zero-Bezel PCAP touch panel PCs come with projected capacitive touch panel, edge to edge design without bezels that eliminates dust and debris build-up at the edge and corners of the display. The rugged steel chassis with robust aluminum frame and highly-durable glass front surface provide the durability needed for demanding pubic/industrial environments. The PCAP touch panel is combined with projected capacitive touch makes true flat surface with easy to clean and come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities are ideal for public information, digital poster, digital signage, kiosk, home automation, building automation, access automation and custom HMI applications.

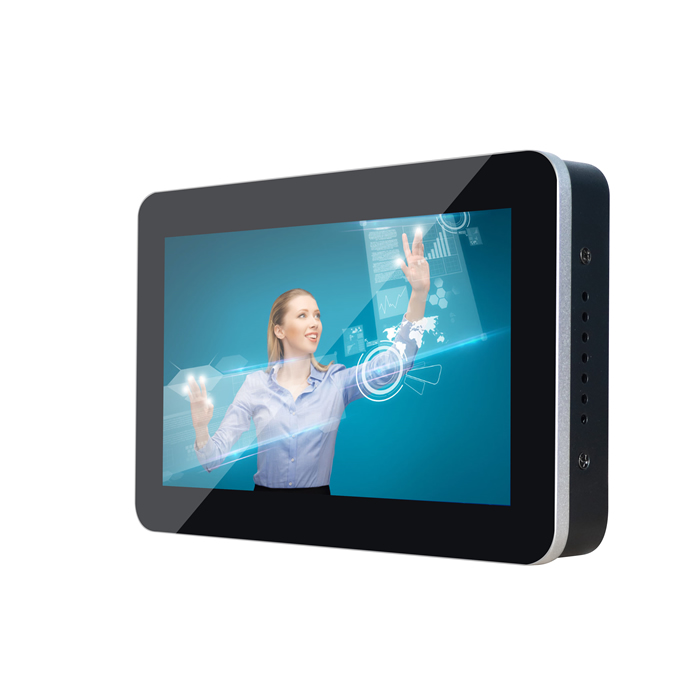

Zero-Bezel PCAP Touch Panel PC
Model Name
ITD07PPCG1K**
IP Rating
IP65 Front Panel
PC Systems Options
ARM Android Based RK3288(RK3399 optional)
X86 Based
X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz
CPU: Intel Celeron J1900/J4125/6412
CPU: Intel Core i3/i5/i7 4th~11th Generation
Chipset: Rockchip
Chipset: Intel Bay Trail SOC
Chipset: Intel SoC
Graphic: Intel HD Graphics (By CPU)
Chipset: Intel HD Graphics (By CPU)
Memory: 2G Max. 8GB
Memory: 4GB, Max. 8GB/16GB; DDR4 SODIMM x1
Memory: 4GB, Max. 32GB; DDR4 SODIMM x2
HDD/SSD: 8G Max. 64GB
Storage: 1 x SATA, 1 x mSATA, Default to 64GB SSD
Storage: 1 x SATA, 1 x mSATA, Default to 64GB SSD
1¡ÁHDMI Output
1¡ÁVGA, 1¡ÁHDMI
1¡ÁVGA, 1¡ÁHDMI
1¡ÁUSB 2.0
2¡ÁUSB 2.0, 2¡ÁUSB3.0
2¡ÁUSB 2.0, 2¡ÁUSB3.0
1¡ÁTF Slot
2¡ÁCOM(RS232/422/485)
1¡ÁCOM(RS232/422/485)
1¡ÁLAN
1¡ÁLAN (Dual LAN optional)
1¡ÁLAN (Dual LAN optional)
1¡ÁAudio Output
1¡ÁAudio Out, 1¡ÁMIC In
1¡ÁAudio Out, 1¡ÁMIC In
1¡ÁCOM
Expansion: USB, COM, Mini-PCIe, etc.
Expansion: USB, COM, Mini-PCIe, etc.
OS Support: Android 7.1/8/9/10/11
OS Support: Windows 7/10/11, Linux
OS Support: Windows 7/10/11, Linux
LCD Panel
Screen Diagonal (Inch/cm)
7¡±
Display Active Screen Size (mm)
154.214(H)¡Á85.92(V)
Aspect Ratio
16:9
Physical Resolution
1024¡Á600
Maximum Resolution Supported
1920¡Á1080
Colors
262K/16.7M
Brightness (cd/m2)
400
Contrast Ratio
800:1
View Angels
75/75/70/75
Backlight/Backlight Lifetime
LED Backlight with 50000Hours'Lifetime
Touch Panel
Touch Technology
Projected Capacitive Touch
Touch Drivers
Windows, Linux, Android, Mac, Raspberry Pi
Touch Life
50,000,000 Times/Click
Surface Hardness
7H
OS Support
Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range
-10~60¡ãC (-20~70¡ãC Optional)
Humidity Range (RH)
10-90%
24/7/365 Use
Supported
Power
Power Indicator
Green LED
Power Input
DC 12V
Power Consumption
15W
Order Information
7¡± Zero-Bezel Touch Panel PC with PCAP Touch, J1900
ITD7PPCT5KJ1
7¡± Zero-Bezel Touch Panel PC with Tempered Glass, J1900
ITD7PPCG1KJ1
7¡± Zero-Bezel Touch Panel PC with PCAP Touch, Z8350
ITD7PPCT5KZ1
7¡± Zero-Bezel Touch Panel PC with Tempered Glass, Z8350
